FMPV645DPK Direction Plus Fuel Manager Provent 200 Kit Perth Fits New D-Max Melbourne New BT50 Sydney BT-50

FMPV645DPK

$800.00 $639.95

or 4 fortnightly payments of $159.99 with Afterpay More info

FMPV645DPK Direction Plus Fuel Manager & Provent 200 Kit Fits D-Max, BT-50

This Kit comes with everything you need to install the Directions Plus Provent system & Fuel Manager Pre Filter



Share this

FMPV645DPK Direction Plus Fuel Manager & Provent 200 Kit Fits D-Max, BT-50

This Kit comes with everything you need to install the Directions Plus Provent system & Fuel Manager Pre Filter

Suits: Isuzu D-Max 3.0L T/Diesel 2021 Onward, Mazda BT-50 3.0L T/Diesel 2021 Onwards

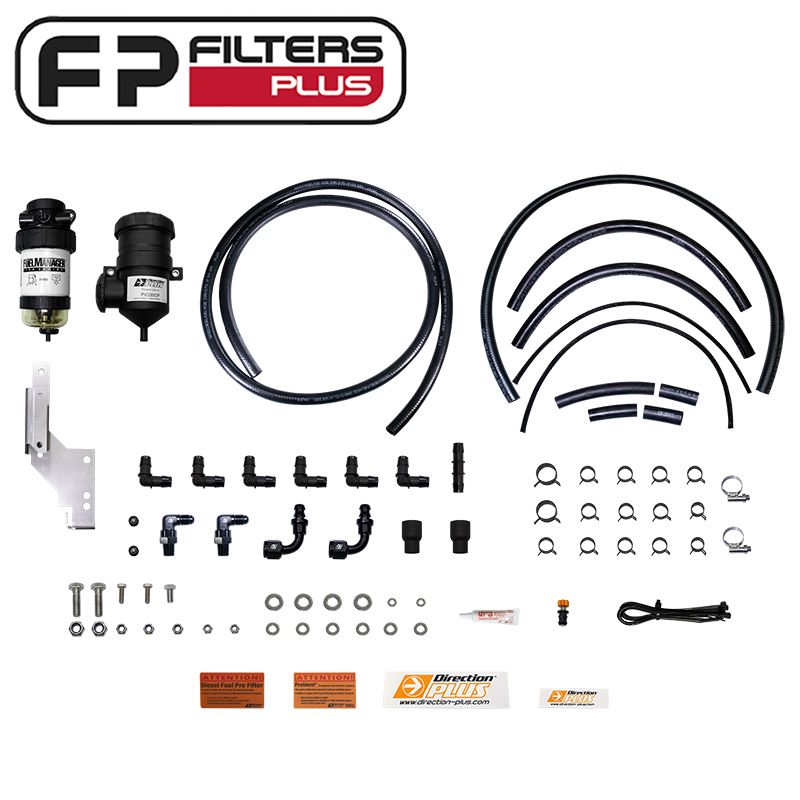

Kit Includes: Provent Breather, Pre-install filter element, Fuel Manager Housing with Filter & Bowl, Stainless Steel Bracket, Hose & Fittings.

Replacement Fuel Filter: 31863
Replacement Breather Filter: LC5001X

Direction Plus ProVent benefits:

  • Prevent oil and soot contamination from entering the clean air intake
  • Excellent protection for turbocharger
  • Minimises oil consumption*
  • Prevent oil build up in intercoolers
  • Regulates crankcase pressure
  • Keeps critical engine components clean
  • Reduces exhaust smoke and odours
  • Saves you money

* only in installations where the oil is returned to the sump

We also stock Fuel Manager, Provent & Service Kits for the New D-max

New Isuzu Dmax 2020 Onward Filters Perth Sydney Melbourne

Protection against Costly repairs and poor performance

Direction plus, ProVent oil separator kits protect your modern diesel engine by sustainably reducing the amount of oil entering the engine from blow-by gas in the crankcase ventilation system.

The problem is compounded with modern engines fitted with exhaust gas recirculation systems (EGR) whereby a proportion of the exhaust gas is routed back into the engine. With the presence of oil from the crankcase ventilation system, the oil collects the exhaust particles. The combination of oil and exhaust particles from the EGR build up to a point where it blocks inlet manifolds and valves, resulting in reduced engine performance or failure.

By not fitting a Direction Plus ProVent system, it is likely that your engine will experience a progressive reduction in performance. The images below are typical examples of the build-up in engines not fitted with a Direction Plus ProVent system.

Direction Plus ProVent systems, are specifically designed for its ability to separate and redirect oil and air from blow-by gas produced from within the crankcase. The Direction Plus ProVent system also provides the option of returning the oil back to the sump.

For the ultimate defence against oil and soot contamination, investing in a Direction Plus ProVent oil separator kit will protect your investment 24 hours a day, 365 days a year.

Why Do you need Extra Common Rail Fuel Filtration?

Diesel acts as a lubricant and moves around the fuel injection system freely, until it is placed under ultra-high pressure and burnt in a gas-like state to drive the vehicle. This makes the fuel injection system very susceptible to particle contamination and more importantly water damage.

Are you able to remember back to the days before ULSD (Ultra Low Sulphur Diesel) and LSD (Low Sulphur Diesel)? Do you remember having to drain the water out of your 4×4 fuel filters? Most of us do. But we haven’t had to do it for a long time, have we? The answer to this is the change in the fuel itself. Ultra-Low Sulphur Diesel that we have today, suspends water in the fuel. This is called emulsified fuel. This means you can’t see it in normal circulation like “whole water” which is separate in the bottom of the fuel bowl. The Direction Plus Fuel Kits are designed to remove water contamination above all else, even the water you cant see.

As the Australian and New Zealand climate fluctuates between hot and cold weather conditions, water condensation starts to develop. The water molecules from this condensation enter the fuel system and mix with diesel to reduce the overall lubricity of diesel within the fuel system. This causes friction damage with internal components and as metal particles start to break off and move around the fuel system, this is where damage starts to compound and impact other parts and components within the fuel system.

Most diesel vehicles are fitted with a 2-5 micron final filter (size of bacteria) installed by the O.E.M to remove the finer contamination. The Direction Plus Diesel Fuel Pre-Filter kits utilise a 30-micron filter (size of lint) which is specifically selected to remove the majority of the dirt, rocks, dust, rust, scale, yeasts, mould, bacteria, algae, acid and most importantly water that may be present in the fuel before it enters the engine.

By installing the Direction Plus™ Diesel Fuel Pre-Filter Kit in your vehicle you are helping to maintain the life of your fuel injection system and maintain system power delivery.

Features & Benefits of using a DIRECTION PLUS Diesel Fuel Pr-Filter Kit

  • 95% whole water separation and superior particle contamination removal
  • Ability to separate emulsified water (water mixed with diesel) from Ultra Low Sulphur Diesel
  • Has a clear water drainage bowl to easily identify water
  • Does not have a filter bypass – meaning contaminated fuel will not be sent to the fuel system when the filter becomes blocked
  • Kits can be installed in under 1 hour
  • Increases the reliability of your Diesel Vehicle

FMPV645DPK Availability

Perth: Stocked
Melbourne, Sydney, Hobart, Adelaide, Brisbane: Fast Shipping from WA

Direction Plus

Filters Plus WA stocks the entire range of Direction Plus products including Fuel Manager, Preline and Provent Kits.

Direction-Plus™ is one of Australia’s most trusted brands for supplying technically superior, best in class kits & accessories for diesel-fuelled passenger 4×4 vehicles. With dealers located nation-wide, Direction-Plus™ has the reach to ensure your parts needs are covered and backed by a dedicated team of experts. Our industry knowledge and experience ensures you receive quality advice and reliable parts the first time, every time.

Want to learn more about Direction Plus? Check them out here

SKU: FMPV645DPK Tags: , , , , .
Weight 3 kg
Dimensions 300 × 200 × 150 mm
Filter Type

Breather, Fuel Water Separator
